DroneCAN¶
DroneCAN (previously known as UAVCAN or UAVCANv0), is an open protocol for communication over a CAN bus. DroneCAN is supported by both PX4 and Ardupilot flight controllers. Refer to the DroneCAN documentation for more information on the protcol and the standard.

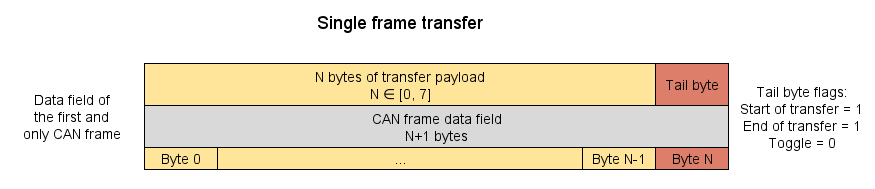

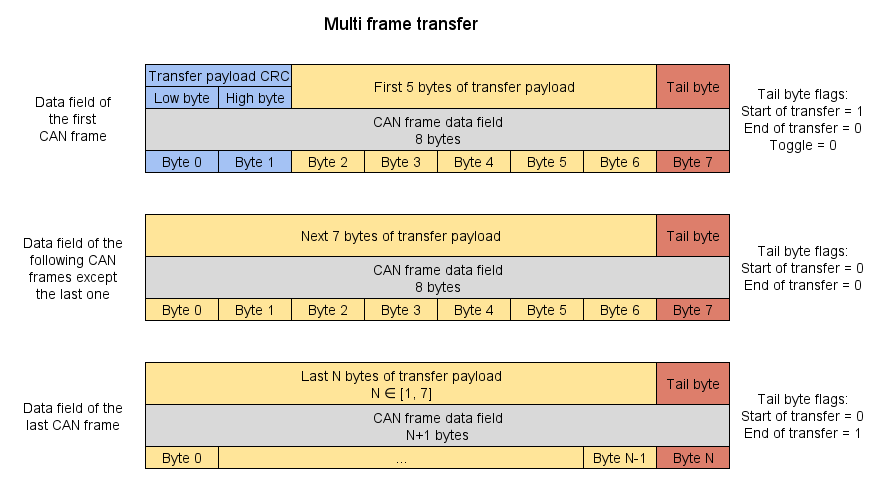

Module Support¶
Standard DroneCAN Support¶
This section details the standard DroneCAN messages supported across all Vertiq DroneCAN modules. The structure and contents of these messages are defined by the DroneCAN specification. This section just provides details on how exactly Vertiq modules support them and some supplementary information.
Details on the DroneCAN protocol can be found on the DroneCAN specification. For a full listing of all standard messages specified by DroneCAN, see the List of Standard Data Types in the DroneCAN specification.
Broadcast Messages¶
These are broadcast messages that are sent to or from the motors. Broadcast messages are not intended for any specific node on the bus, data is simply transferred over the bus and is available for any node that is interested. Since they are broadcast, there is no response message sent. These messages typically make up the majority of communication on the bus during operation.
uavcan.protocol.NodeStatus (Data Type ID = 341)¶
The DroneCAN protocol requires that all nodes on a DroneCAN network periodically publish their status using the Node Status message. Vertiq modules support this behavior to conform to the standard. A uavcan.protocol.NodeStatus message is published at 1 Hz during operation, reporting its health, current mode, and uptime.
In normal operation a Vertiq module should always report its Health as OK, and its mode as Operational. No sub-modes or vendor specific status codes are currently supported.
Refer to the uavcan.protocol.NodeStatus section of Standard Data Types in the specification for more details.
uavcan.equipment.esc.Status (Data Type ID = 1034)¶
This message is published periodically and provides telemetry updates on the state of the motor and its inputs. Specifically it contains information on:
Error Count: This is a counter of CAN bus errors, specifically it details the number of transmit errors the motor has encountered.
Voltage: The input voltage to the motor in volts
Current: The current draw of the motor in amps
Temperature: The temperature of the motor’s coils in Kelvin or the motor’s microcontroller temperature in Kelvin depending on the value of
DroneCAN Telemetry Style. Please see uavcan.equipment.esc.StatusExtended (Data Type ID = 1036) for more information.RPM: The current speed of the motor in RPM
Power Rating Percentage: The PWM duty cycle percentage being applied to the motor, from 0% to 100%. Maximum power draw occurs at 100% duty cycle
ESC Index: The ESC index of the motor that is broadcasting this update
The frequency that this message is published at is determined by the Telemetry Frequency configuration parameter.
Refer to the uavcan.equipment.esc.Status section of Standard Data Types in the specification for more details.
uavcan.equipment.device.Temperature (Data Type ID = 1110)¶
Note
This message is transmitted only if DroneCAN Telemetry Style is configured to Use Old-Style Telemetry. Please see uavcan.equipment.esc.StatusExtended (Data Type ID = 1036) for more information.
This message is published periodically and provides updates on the temperature of the microcontroller used on the controller. The fields contained in this message are:
Device ID: The ESC index of the motor sending this broadcast
Temperature: The temperature of the microcontroller in Kelvin. Note that this is different from the temperature in the ESC status message, as that is the temperature of the coils.
Error Flags: Indicates if the motor is overheating with the standard ERROR_FLAG_OVERHEATING flag. See the error flag definitions on the DroneCAN documentation.
The frequency that this message is published at is determined by the Telemetry Frequency configuration parameter.
Refer to the uavcan.equipment.device.Temperature section of Standard Data Types in the specification for more details.
uavcan.equipment.esc.RawCommand (Data Type ID = 1030)¶
Used to control the speed and direction of the motor. This message should be sent from the flight controller to the motors. The payload consists of a list of up to 20 values, with each value interpreted as a 14 bit signed integer. Each entry in the list corresponds to a motor with the given ESC index. E.g. The first entry in the list of raw commands will be read by the motor that has been assigned ESC index 0, the second entry will be read by the motor with ESC index 1, and so on.
The values represent the speed and direction to command the motor to, normalized over a range of [-8192, 8191], with -8192 being full speed in reverse and 8191 being full speed forward.
Refer to the uavcan.equipment.esc.RawCommand section of Standard Data Types in the specification for more details
uavcan.tunnel.Broadcast (Data Type ID = 2010)¶
DroneCAN’s “tunnel” messages allow users to transmit arbitrary data bytes through the DroneCAN protocol. The tunnel broadcast message contains a byte representing the protocol being tunneled, a channel ID allowing for additional routing options, and an array of up to 60 bytes of data.
Vertiq modules are configured to accept broadcast messages with a protocol value of 0x55, and check the received data buffer for valid IQUART data. As such, the DroneCAN tunnel broadcast message allows users to transmit IQUART messages via DroneCAN. Vertiq modules do not support use of the channel ID for additional routing.
In this example, the module has no serial connection to IQ Control Center. Instead, the Control Center sends messages to a Python script which packages the IQUART bytes as a DroneCAN tunnel message, and transmits the message to the module. The module receives and decodes the IQUART message, and if necessary, forms a response as a DroneCAN tunnel message which is sent back to the Python script. Finally, the Python script pulls the IQUART response out of the module’s tunnel message, and transmits the response to the Control Center via IQUART.
A similar configuration is possible using a flight controller with a serial connection, CAN connection, and appropriate script running.
The process is summarized below.
This example requires an SLCAN device such as the Zubax Babel and any software that can emulate COM ports. In this example, we are using com0com. Please note that the following example will only work on the Windows operating system, though a similar approach can be taken on Linux/UNIX.
We will use the virtual COM ports in order to create the following connections:
In order to create the required virtual COM ports using com0com, open com0com, and create a Virtual Port Pair. In this example, we’ve created COM16 and COM17 which, by default, are connected as depicted in the diagram above.
On Windows, you can confirm that these ports are reachable through Device Manager.
The Python script necessary to accomplish run this example is provided here. Run this script before attempting to connect with the Control Center:
import time
import iqmotion as iq
import dronecan
import serial
slcan_port = "COM9" #Replace this value with the port connected to your SLCAN device
control_center_ftdi_port = "COM17" # Replace this value with the port connected to a virtual COM port
def make_node():
for attempt in range(10):
try:
node = dronecan.make_node(slcan_port, node_id=126, baudrate=115200, bitrate=500000)
except serial.SerialException:
print("Trouble connecting to DroneCAN, waiting and trying again...")
time.sleep(2)
continue
else:
break
return node
def read_response_callback(event):
if event:
data = event.transfer.payload.buffer
decode_gotten_data(data)
else:
print("Read request has timed out")
def decode_gotten_data(data):
received_iquart_data = []
for byte in data:
received_iquart_data.append(byte)
packet_parse.add_to_out_queue(bytearray(received_iquart_data))
packet_parse.send_now()
def crc16(data: bytes):
'''
CRC-16 (CCITT) implemented with a precomputed lookup table
'''
table = [
0x0000, 0x1021, 0x2042, 0x3063, 0x4084, 0x50A5, 0x60C6, 0x70E7, 0x8108, 0x9129, 0xA14A, 0xB16B, 0xC18C, 0xD1AD,
0xE1CE, 0xF1EF,
0x1231, 0x0210, 0x3273, 0x2252, 0x52B5, 0x4294, 0x72F7, 0x62D6, 0x9339, 0x8318, 0xB37B, 0xA35A, 0xD3BD, 0xC39C,
0xF3FF, 0xE3DE,
0x2462, 0x3443, 0x0420, 0x1401, 0x64E6, 0x74C7, 0x44A4, 0x5485, 0xA56A, 0xB54B, 0x8528, 0x9509, 0xE5EE, 0xF5CF,
0xC5AC, 0xD58D,
0x3653, 0x2672, 0x1611, 0x0630, 0x76D7, 0x66F6, 0x5695, 0x46B4, 0xB75B, 0xA77A, 0x9719, 0x8738, 0xF7DF, 0xE7FE,
0xD79D, 0xC7BC,
0x48C4, 0x58E5, 0x6886, 0x78A7, 0x0840, 0x1861, 0x2802, 0x3823, 0xC9CC, 0xD9ED, 0xE98E, 0xF9AF, 0x8948, 0x9969,
0xA90A, 0xB92B,
0x5AF5, 0x4AD4, 0x7AB7, 0x6A96, 0x1A71, 0x0A50, 0x3A33, 0x2A12, 0xDBFD, 0xCBDC, 0xFBBF, 0xEB9E, 0x9B79, 0x8B58,
0xBB3B, 0xAB1A,
0x6CA6, 0x7C87, 0x4CE4, 0x5CC5, 0x2C22, 0x3C03, 0x0C60, 0x1C41, 0xEDAE, 0xFD8F, 0xCDEC, 0xDDCD, 0xAD2A, 0xBD0B,
0x8D68, 0x9D49,
0x7E97, 0x6EB6, 0x5ED5, 0x4EF4, 0x3E13, 0x2E32, 0x1E51, 0x0E70, 0xFF9F, 0xEFBE, 0xDFDD, 0xCFFC, 0xBF1B, 0xAF3A,
0x9F59, 0x8F78,
0x9188, 0x81A9, 0xB1CA, 0xA1EB, 0xD10C, 0xC12D, 0xF14E, 0xE16F, 0x1080, 0x00A1, 0x30C2, 0x20E3, 0x5004, 0x4025,
0x7046, 0x6067,
0x83B9, 0x9398, 0xA3FB, 0xB3DA, 0xC33D, 0xD31C, 0xE37F, 0xF35E, 0x02B1, 0x1290, 0x22F3, 0x32D2, 0x4235, 0x5214,
0x6277, 0x7256,
0xB5EA, 0xA5CB, 0x95A8, 0x8589, 0xF56E, 0xE54F, 0xD52C, 0xC50D, 0x34E2, 0x24C3, 0x14A0, 0x0481, 0x7466, 0x6447,
0x5424, 0x4405,
0xA7DB, 0xB7FA, 0x8799, 0x97B8, 0xE75F, 0xF77E, 0xC71D, 0xD73C, 0x26D3, 0x36F2, 0x0691, 0x16B0, 0x6657, 0x7676,
0x4615, 0x5634,
0xD94C, 0xC96D, 0xF90E, 0xE92F, 0x99C8, 0x89E9, 0xB98A, 0xA9AB, 0x5844, 0x4865, 0x7806, 0x6827, 0x18C0, 0x08E1,
0x3882, 0x28A3,
0xCB7D, 0xDB5C, 0xEB3F, 0xFB1E, 0x8BF9, 0x9BD8, 0xABBB, 0xBB9A, 0x4A75, 0x5A54, 0x6A37, 0x7A16, 0x0AF1, 0x1AD0,
0x2AB3, 0x3A92,
0xFD2E, 0xED0F, 0xDD6C, 0xCD4D, 0xBDAA, 0xAD8B, 0x9DE8, 0x8DC9, 0x7C26, 0x6C07, 0x5C64, 0x4C45, 0x3CA2, 0x2C83,
0x1CE0, 0x0CC1,
0xEF1F, 0xFF3E, 0xCF5D, 0xDF7C, 0xAF9B, 0xBFBA, 0x8FD9, 0x9FF8, 0x6E17, 0x7E36, 0x4E55, 0x5E74, 0x2E93, 0x3EB2,
0x0ED1, 0x1EF0
]
crc = 0xFFFF
for byte in data:
crc = (crc << 8) ^ table[(crc >> 8) ^ byte]
crc &= 0xFFFF # important, crc must stay 16bits all the way through
return crc
if __name__ == "__main__":
#Create an object that can create/parse IQUART mesages
packet_parse = iq.SerialCommunicator(control_center_ftdi_port)
#Create a DroneCAN node, and start it up
dronecan_node = make_node()
#Add a callback function for when we receive Tunnel Broadcast mesasges
dronecan_node.add_handler(dronecan.uavcan.tunnel.Broadcast, read_response_callback)
while(1):
#Process our DroneCAN node
dronecan_node.spin(0)
#If we got IQUART data, package it for DroneCAN and send it out
packet_parse.read_bytes()
message_byte_arr = packet_parse.extract_message()
if(message_byte_arr is not None):
buffer_to_send = list(packet_parse._make_packet(message_byte_arr))
message = dronecan.uavcan.tunnel.Broadcast(protocol=dronecan.uavcan.tunnel.Protocol(protocol=0x55), channel_id=42, buffer=buffer_to_send)
dronecan_node.broadcast(message)
While this script is running, your module is powered on and connected properly, and your virtual COM ports are configured correctly, you should be able to connect your module to IQ Control Center without a direct serial connection.
With the script active, navigate to the Control Center, and in Serial Port, select the virtual COM port not connected to your running script (in this case COM16). After you click CONNECT, you should see the Control Center perform its normal detection process, and connect with your module.
Refer to the uavcan.tunnel.Broadcast section of Standard Data Types in the specification for more details.
uavcan.equipment.safety.ArmingStatus (Data Type ID = 1100)¶
Note
The ArmingStatus message is not yet supported on all modules that support DroneCAN. Please check vertiq.co to ensure that you are on the latest firmware version available for your module to gain access to the most up to date features.
DroneCAN’s ArmingStatus message broadcasts the overall system’s arming state. For example, both PX4 and ArduPilot can transmit the ArmingStatus message. Vertiq modules are configured only to listen for, and not transmit, the ArmingStatus message. More information on configuring your module to update its arming state based on the ArmingStatus message can be found below in Arming and Arming Bypass. Information about configuring your flight controller to transmit the ArmingStatus message can be found in our tutorial for integrating with flight controller DroneCAN.
uavcan.equipment.indication.LightsCommand (Data Type ID = 1081)¶
Vertiq modules do not publish this broadcast message, but they do listen for it. The content of this message can be used to dynamically control the white and RGB LEDs on Vertiq’s LED Boards. For more information on the LED Board, see Stock LED Support (White and RGB LED Control).
As detailed by the DroneCAN specification this message contains an array of SingleLightCommands to be handled by the nodes on the bus. Each SingleLightCommand contains a light ID to indicate which light that command is for and a field that indicates either the intensity of the white LED or the color of the RGB LED depending on the targeted LED. For Vertiq modules, the light ID of each type of LED (RGB or White) is determined based on the ESC index. This allows the LEDs on each module on a bus to be uniquely addressable as long as each module has a unique ESC index. The light IDs on each module are calculated as described in the example code block below:
#The base ID for an RGB LED is 1, and the base ID for a white LED is 2. From there, we can just apply the calculation below to determine
#what the light IDs for a module with a given ESC index should be. For example, if my module has an ESC Index of 1,
#then the White LED's light ID will be 1*3 + 2 = 5. The RGB LED's light ID will be 1*3+1 = 4
RGB_LIGHT_TYPE_BASE_ID = 1
WHITE_LIGHT_TYPE_BASE_ID = 2
light_id = (esc_index*3 + LIGHT_TYPE_BASE_ID)
Refer to the uavcan.equipment.indication.LightsCommand section of Standard Data Types in the specification for more details.
uavcan.equipment.esc.StatusExtended (Data Type ID = 1036)¶
Note
This message is published only if DroneCAN Telemetry Style is configured to Use New-Style Telemetry. More information about telemetry style is found below.
This message is published periodically, and acts as an extension of uavcan.equipment.esc.Status. The extra information in this message is as follows:
Input Percent: Input command to ESC, in percent, which is commanded using the setpoint messages. Range 0% to 100%
Output Percent: Output command from ESC to motor, in percent. Range 0% to 100%
Motor Temperature °C: Temperature of connected motor, in Celsius. Range is -256 to +255 C
Motor Angle: Measured angle of connected angle sensor, in degrees. Range is 0 to 360
- Status Flags: Manufacturer-specific status flags currently active
Bit 0: Indicates the module’s current arming state (see Advanced Arming for more information)
Bits[3:1]: Indicate the module’s drive mode (see brushless drive’s
drive_modefor more information)Bit 4: Indicates if the module is timed out (see Timeout for more)
Bit 5: Indicates if the last stow attempt was successful (see Stow Position for more information)
Bit 6: Indicates if the module is holding stow (see Stow Position for more information)
ESC Index: The ESC index of the motor that is broadcasting this update
The frequency that this message is published at is determined by the Telemetry Frequency configuration parameter.
Please note that it is possible to disable this message, and fall back to the legacy transmission of uavcan.equipment.esc.Status and uavcan.equipment.device.Temperature as your
telemetry sources. In IQ Control Center’s Advanced tab, you’ll find the DroneCAN Telemetry Style parameter.
Setting this to Use New-Style Telemetry will output ESC Status and ESC Status Extended as your telemetry. In this case, the reported temperature through ESC Status is
your module’s coil temperature, and ESC Status Extended’s reported temperature is the temperature of your module’s microcontroller.
Setting this to Use Old-Style Telemetry will output ESC Status and Device Temperature as your telemetry. In this case, the reported temperature through ESC Status
is your module’s microcontroller temperature, and Device Temperature’s reported temperature is the temperature of your module’s coil.
Note
We recommend using the Use New-Style Telemetry in order to receive the most telemetry data from your modules.
Service Requests¶
Service requests are messages sent to a specific target node from another node, and to which the sending node expects to receive a response message.
uavcan.protocol.GetNodeInfo (Data Type ID = 1)¶
This request has no payload fields. The response message from the receiving node should include the status of the node as defined by the NodeStatus message, the software and hardware version of the node, and the name of the node. For Vertiq modules, the name of each node is currently “iq_motion.esc”.
Refer to the uavcan.protocol.GetNodeInfo section of Standard Data Types in the specification for more details
uavcan.protocol.dynamic_node_id.Allocation (Data Type ID = 1)¶
This message is used by both the dynamic node allocator and allocatee. Vertiq modules can only act as the DNA allocatee. It is used to carry out the DNA process which is covered in detail here. More information about configuring your Vertiq module to use dynamic node ID allocation, please refer to Advanced Plug-And-Play Functionality.
Refer to The uavcan.protocol.dynamic_node_id.Allocation section of the Standard Data Types in the specification for more details on this message.
uavcan.protocol.param.GetSet (Data Type ID = 11)¶
Used to get or set the value of a configuration parameter using either the index or the name of the parameter. The configuration parameters currently available on standard Vertiq modules are listed in the Configuration Parameters section below. The request message should contain the index or name of the parameter (depending on how you are accessing it), and if performing a set operation, should contain the value to set to the parameter. Parameter indices are not guaranteed to remain consistent across firmware versions. Indices should only be used for parameter discovery, when accessing the parameter directly it is recommended to always use the name.
The response message will contain the value of the parameter, information about its default, minimum, and maximum values (if applicable), and the name of the parameter.
Refer to the uavcan.protocol.param.GetSet section of Standard Data Types in the specification for more details.
uavcan.protocol.RestartNode (Data Type ID = 5)¶
This request has one field, its “magic number.” This field is an unsigned 40 bit integer. The magic number is used to identify that this is an intentional restart request, and we have also extended it to allow for two different types of reboots. One magic number performs a normal reboot that simply restarts into the normal application firmware, and the other reboots the device into the ST bootloader, which allows it to be programmed with new firmware. The numbers for each are:
Normal Reboot Magic Number = 0xACCE551B1E
Reboot to Bootloader Magic Number = 0xBEEFCAFE
The response to this request contains one boolean field. This field will be true if the number received was a valid magic number and the motor is restarting, and false if the number received was not one of the valid numbers.
Refer to the uavcan.protocol.RestartNode section of Standard Data Types in the specification for more details.
uavcan.protocol.file.BeginFirmwareUpdate (Data Type ID = 40)¶
On modules that support DroneCAN firmware updates, this command causes the module to enter into upgrade mode, and begin attempting to firmware update over DroneCAN. The request includes a source node ID and a file path on that source node. The module will attempt to get information on the file from the file server, and then begin reading the data from the upgrade file.
On modules that do not support DroneCAN firmware updates, the module will respond with an INVALID_MODE error code to this request.
Refer to the uavcan.protocol.file.BeginFirmwareUpdate section of Standard Data Types in the specification for more details.
Configuration Parameters¶
Configuration parameters are parameters that can configure the behavior of a Vertiq module and are available to read and modify over DroneCAN. The uavcan.protocol.param.GetSet request can be used to access configuration parameters. The sections below cover the stadard configuration parameters available on Vertiq modules.
Node ID¶
Name |
Type |
uavcan_node_id |
Integer |
This parameter defines the node ID of the module on the UAVCAN network. This ID is how the node identifies itself when sending and receiving messages. No two nodes should have the same node ID. ID 0 is reserved by the DroneCAN standard for unconfigured modules. A reboot is typically required after changing this parameter for the device to use the new node ID on the network.
This parameter can also be changed through the IQ Control Center if you wish to change this without using DroneCAN.
Bitrate¶
Name |
Type |
bit_rate |
Integer |
This parameter determines the DroneCAN bitrate that the module will use in bit/s. This parameter takes effect immediately when changed, so if this is changed it will most likely be necessary to reconnect to the bus as at the new bitrate to continue communicating with the module.
ESC Index¶
Name |
Type |
esc_index |
Integer |
This parameter defines the ESC index of the module. The ESC index is used when a Raw Command message is received to determine which value in the Raw Command should be read by the module.
This parameter can also be changed through the IQ Control Center if you wish to change this without using DroneCAN.
Zero Behavior¶
Name |
Type |
zero_behavior |
Integer |
This parameter defines the behavior of the motor when it receives a zero setpoint in a Raw Command message, but only if the module is bypassing arming on DroneCAN. If the module is using normal arming with DroneCAN, the Zero Behavior is not used, instead the disarm behavior provides a similar functionality that integrates with arming and disarming.
There are three possible behaviors: Coast, Brake, and Normal Controller. By changing the integer value of Zero Behavior, the user can determine which of these behaviors is used.
Descriptions of each behavior and the integer value of the Zero Behavior parameter corresponding to them are given below:
Coast (Value = 0): The module will stop trying to drive the motor, releasing control and letting it simply coast to a stop.
Brake (Value = 1): The motor will stop suddenly on a zero setpoint instead of coasting gently to a stop. After stopping, it will then coast.
Normal Controller (Value = 2): The normal controller continues to run, and will try to drive the motor at 0% throttle. This can cause vibrating or twitching in velocity mode if the PID gains are high.
This parameter can also be changed through the IQ Control Center if you wish to change this without using DroneCAN.
Telemetry Frequency¶
Name |
Type |
telem_frequency |
Integer |
This parameter defines the frequency in Hz with which the telemetry messages (uavcan.equipment.esc.Status and uavcan.equipment.device.Temperature) are broadcast by the module. For example, if this value were set to 10, the telemetry would be sent at a rate of 10 Hz. If this parameter is set to 0, no telemetry messages will be sent.
This parameter can also be changed through the IQ Control Center if you wish to change this without using DroneCAN.
Motor Armed¶
Name |
Type |
motor_armed |
Integer |
This parameter is available on modules that support Advanced Arming. It can be used to query and control the armed state of the module. See the section on user arming commands over DroneCAN for more information.
Motor Stowed¶
Name |
Type |
motor_stowed |
Integer |
This parameter is available on modules that support Stow Position. It can be used to command and release stow on modules. See the section on manual stow over DroneCAN for more information.
Stow Status¶
Name |
Type |
stow_status |
Integer |
This parameter is available on modules that support Stow Position. It reports on the current state of the stow feature on the module. See the Stow Status section for more information.
Stow Result¶
Name |
Type |
stow_result |
Integer |
This parameter is available on modules that support Stow Position. It reports on how the previous stow attempt ended. See the Stow Result section for more information.
Note
The following parameters are not yet available on all modules that support DroneCAN. If you do not see these parameters, check vertiq.co for a new firmware release for your module. If you are on the latest release and do not have access to these parameters, future updates for your module may add support for these messages.
Module ID¶
Name |
Type |
module_id |
Integer |
This parameter defines the module ID of the connected module. Please note that this is different than the DroneCAN Node ID. Your module’s Module ID parameter defines what IQUART messages to accept. You can find out more about IQUART at IQUART, and more about connecting to multiple modules via IQUART in our IQ Control Center documentation.
Motor Direction¶
Name |
Type |
motor_direction |
Integer |
Your module’s motor direction defines, in part, how your module will interpret and react to throttle commands. Motor direction is covered in detail in our throttle documentation.
Motor direction is enumerated as:
Unconfigured
3D Counter Clockwise
3D Clockwise
2D Counter Clockwise
2D Clockwise
Please note that if you are controlling your module with DroneCAN throttle commands, the 3D-2D distinction has no effect. All DroneCAN throttles are taken to be signed (3D),
and motor_direction affects only whether positive throttles specify clockwise or counter clockwise spinning. For more on throttle mapping, see Mapping to Throttle.
Control Mode¶
Name |
Type |
control_mode |
Integer |
Mode determines how the module interprets received throttle commands, and is covered in detail at Mode.
Control mode is enumerated as:
PWM
Voltage
Velocity
Max Volts¶
Name |
Type |
max_volts |
Float |
When control_mode is configured to voltage, max_volts defines the maximum allowable driving voltage. More information can be found at Maximum Voltage.
Max Velocity¶
Name |
Type |
max_velocity |
Float |
When control_mode is configured to velocity, max_velocity defines the maximum allowable angular velocity in rad/s. More information can be found at Maximum Velocity.
Flight Controller Integration¶
For guidance on integrating Vertiq modules with flight controllers using DroneCAN, see the DroneCAN Integration with PX4 and ArduPilot tutorial.
Arming and Arming Bypass¶
Standard Arming¶
DroneCAN can use the same advanced arming procedure as all other throttle sources. The details of this arming procedure are covered in the Advanced Arming section.
Arming with ArmingStatus¶
Vertiq modules can arm and disarm based off of DroneCAN’s ArmingStatus message. This means that whenever your flight controller broadcasts an ArmingStatus
STATUS_FULLY_ARMED message, your module will transition from disarmed to armed, or if already armed, will remain armed. These transitions are not subject to the constraints
set by your arming throttle region, so any STATUS_FULLY_ARMED message will arm your module. When your flight controller broadcasts a STATUS_DISARMED message, your module
will similarly transition from armed to disarmed.
Whether your module arms via the ArmingStatus message is configured through the arming_by_arming_status parameter in the DroneCAN node client. You can access this parameter through
the Control Center’s Advanced tab as Arming By DroneCAN ArmingStatus.
Further, if you are using the ArmingStatus to arm, we highly recommend disabling your module’s ability to arm on throttle. Suppose your module is configured to arm on throttle as well as arm on ArmingStatus. Your flight controller may transmit throttle commands of 0% on boot-up while its ArmingState states disarmed. Then, your module’s arming handler may attempt to arm on throttle, but will be quickly overwritten by an ArmingStatus disarm. This cycle will continue until the flight controller’s throttle leaves your arming region. To avoid this behavior, simply disable arm on throttle. For the same reasons, we also recommend that you disable your module’s ability to disarm on throttle.
Arming Bypass¶
Older Vertiq firmware does not include support for arming over DroneCAN. To maintain backwards compatibility, it is possible for users to toggle arming integration with DroneCAN on or off. This is called “arming bypass”. When Vertiq modules have arming bypass turned on for DroneCAN they will spin on any DroneCAN throttle command, regardless of armed state. Additionally, when arming bypass is on DroneCAN throttle commands will not cause arming or disarming transitions. The advanced arming features are completely ignored by DroneCAN when the arming bypass is on.
Arming bypass for DroneCAN can be controlled with the DroneCAN Bypass Arming parameter in the Advanced tab of the IQ Control Center, as shown below. When this parameter is set to Bypass Arming, arming bypass is on for DroneCAN, and when it is set to Normal Arming, DroneCAN will use the advanced arming feature like all other throttle sources.
DroneCAN Bypass Arming Parameter in IQ Control Center¶
Advanced Plug-And-Play Functionality¶
Vertiq’s DroneCAN nodes support Dynamic Node ID Allocation. The following sections walk you through configuring your modules to use both of this setting, as well as examples of the feature in use with both the DroneCAN GUI tool as well as a flight controller.
Dynamic Node ID Allocation¶
All DroneCAN nodes must have a unique Node ID in order to communicate on the DroneCAN bus. Nodes can be given a unique ID manually, or they may request a dynamically generated Node ID from a Node ID Allocator. Please see the DroneCAN specification for more information about ID Allocators. Vertiq’s DroneCAN nodes can act as allocatees, and can initiate requests to the allocator to receive node ID.
In order to configure your module to use DNA rather than manually setting unique, static, node IDs, simply set its Node ID parameter to 0. According to the DroneCAN
specification, a node ID of 0 indicates an anonymous node, and should be used for allocatees until they are issued a proper ID.
Note
Node ID can be configured in all methods available for DroneCAN configuration. Here, we’ll show an example of configuration through the DroneCAN GUI tool:
Please note that, if configured for DNA (Node ID set and saved as 0 as above), your module will always boot up with DNA active. The ID allocated during DNA is not saved
on reboot. Your DNA allocator server will allocate the same node ID on each handshake if it has saved your module’s UID. For the best performance, we suggest configuring
static, concrete, node IDs for each module you have connected, and only use DNA for initial setup. For example, if your DNA server provides the node ID 124, we recommend
manually setting and saving your module’s node ID to 124 with the same methods available as above.
Receiving a Dynamically Allocated Node ID with the DroneCAN GUI¶
The DroneCAN GUI tool provides an easy-to-use node ID server. Simply click the rocket icon in the bottom right hand side to start the server:
Once your module is powered on and connected to the GUI tool, your module will automatically begin requesting a node ID from the server, and the two will complete the handshake necessary to obtain a dynamically allocated node ID.
As seen through the CAN bus monitor tool, we see our node is allocated the ID 125, and immediately starts reporting its node status and ESC telemetry:
You will see the node ID and its associated UID in the DNA server window:
Receiving a Dynamically Allocated Node ID with PX4 and ArduPilot¶
PX4¶
The following is performed on PX4 version 1.15.1
Open QGroundControl, and connect your flight controller
Navigate to Vehicle Setup
Select Parameters, and scroll down until you find UAVCAN
In the UAVCAN settings, you will find
UAVCAN_ENABLE. Set this value toSensors and Actuators (ESCs) Automatic Config, save, and rebootNavigate to the MAVLink Console in Analyze Tools
Enter
uavcan statusIf you have not connected your module with your flight controller, you will not see any nodes listed
If you have already connected your module, you should see your node, and its allocated ID, listed as shown below
If you have not already, connect and power on your module
Once again, enter
uavcan status, and you should see your module has connected with the flight controller with a dynamically allocated ID
Now, if you reboot your module, and check
uavcan statusagain, you’ll find that PX4 allocates the same ID again
ArduPilot¶
The following is performed on ArduCopter version v4.5.7
Open Mission Planner, and connect your flight controller
Configure DroneCAN as described in DroneCAN Integration with an ArduPilot Flight Controller
If you have not already, connect and power on your module
Navigate to the DroneCAN configuration tool as described in Configuring your Module with DroneCAN Via ArduPilot
You should see your module with its allocated node ID as follows
Now, if you reboot your module, and check the DroneCAN configuration window again, you’ll find that ArduPilot allocates the same ID again
